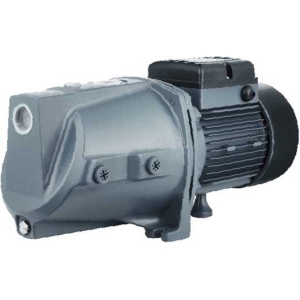

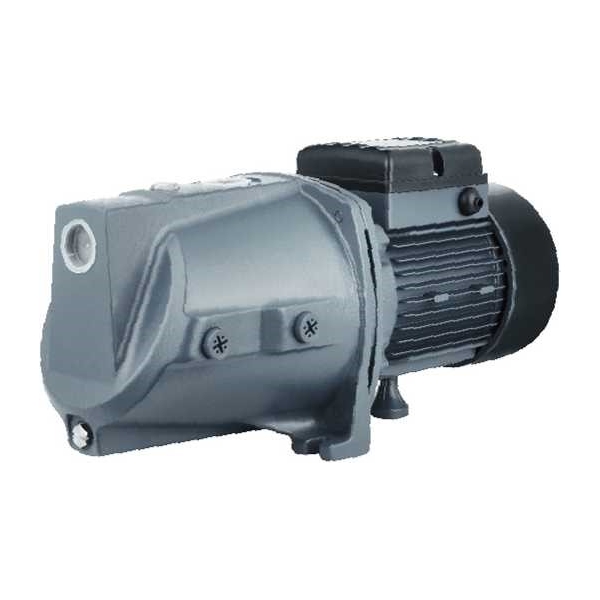

MODEL PJWm/10M

APPLICATION
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The self-priming PJW pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
PUMP
-Electrophoretic for pump body & bracket
-Mechanical seal (graphite to ceramic)
-Brass impeller
-AISI 304 stainless steel welding shaft
-Max.Liquid temperature:+60'c
-Max.suction head: +9m
MOTOR
-C&u bearing
-Motor with copper winding
-Built-in thermal protector for single phase
-Insulation class: F
-Ingress Protection: IP44
-Max.ambient temperature: +40'c
-Wide range voltage design(160V~230V)
-Other voltages or 60 Hz be available at request

0,5M CABLE WITH EU PLUG
