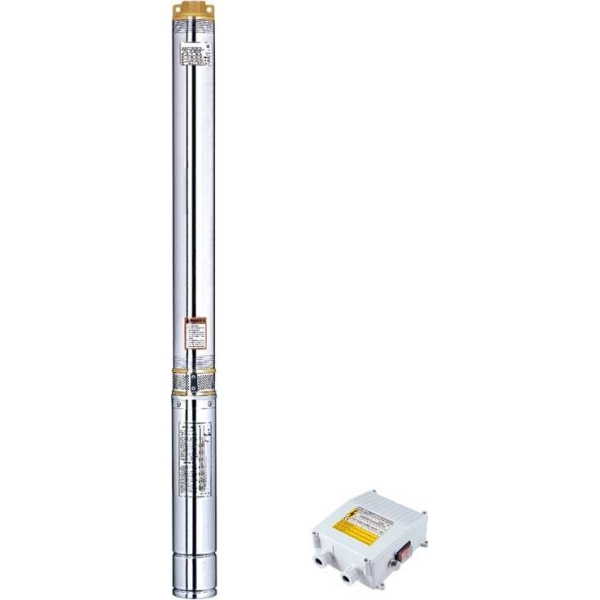

EBP series of pumps are manufactured using high quality materials and are designed to deliver years of dependable service. Pumps are on the floating impeller design which reduces starting torque requirements and reduces the effects of sand in the water.It's used in water supply from wells or reserviors for domestic,agriculture,commercial and industry purposes.

Applications:

·For water supply from wells or reservoirs

·For domestic use,for civil and industrial applications

·For garden use and irrigation

Operating conditions:

  ·Max.fluid temperature up to +35°C

·Max.sand content:0.25%

·Max.imemersion: +80 m

 ·Min.well diameter:4

Pump

·POM impeller

·AISI 304 shaft

·AISI 304 pump body

·Pumps are designed by casing stressed

·Max.liquid temperature: +40°C

·Seal lubricant oil for food machinery and pharmaceutic use

 Motor

·Copper winding

·Built-in thermal protector for single phase motor

 ·Rewindable motor or full obturated screen motor

 ·Three phase:380V-415V/50Hz

 ·Single phase:220V-240V/50Hz

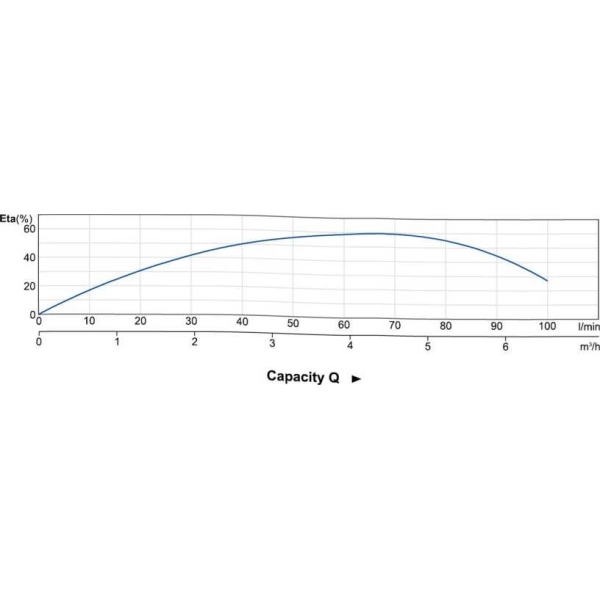

 ·Curve tolerance according to ISO 9906

Features

Power: 7,5HP

Voltage: 380V - 50HZ

Spout: 1 1/4 "

Maximum head: 275m

Maximum flow: 3.6 m3 / h

Features boot board and 1 meter cable

Insulation class F, Protection IP68

Maximum content of sand: 0.25%

Maximum water temperature: 40°C

Dry operation of the pump causes damage

Installation must be vertical.
