APPLICATION

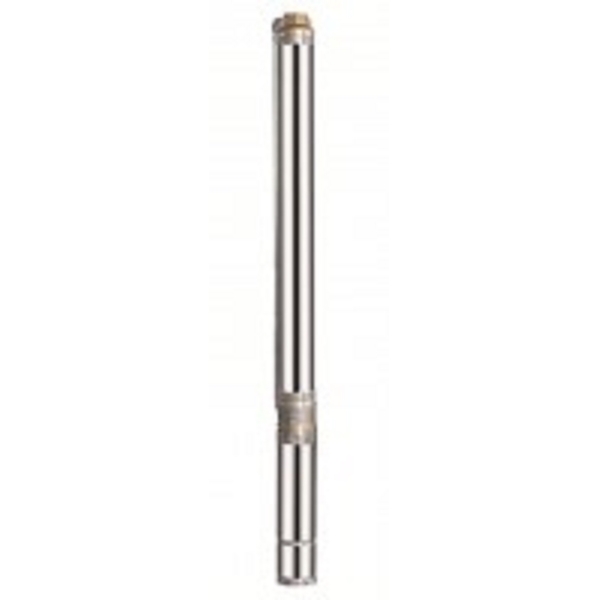

4SDM series of pumps are manufactured using high quality materials and are designed to deliver years of dependable service. Pumps are on the floating impeller design which reduces starting torque requirements and reduces the effects of sand in the water with a sand content of no more than 150g/m3.It's used in water supply from wells or reserviors for domestic,agriculture,commercial and industry purposes.

Applications:

·For water supply from wells or reservoirs

·For domestic use,for civil and industrial applications

·For garden use and irrigation

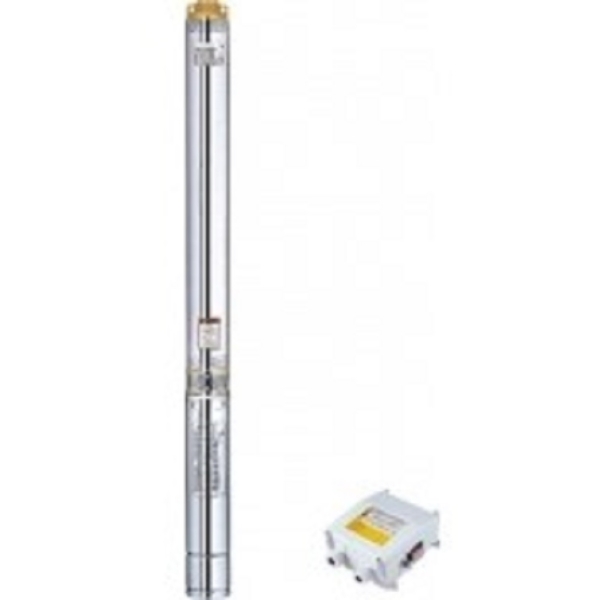

MOTOR AND PUMP
-Rewindable motor
-Pump with start control box or digital auto-control box
-Pumps are designed by casing stressed
-Pump and motor external casing:AISI 304 ss
-Shaft and shaft coupling:AISI 304 ss
-Wear ring:AISI 304 ss
-Delivery casing and suction lantern:Cast-Cu ASTM C85500
-Top chock: 1.Cast-Cu ASTM C85500 2.Cast-iron ASTM NO.30
-Mechanical seahSpecial seal for deep well(Graphite-Ceramic/TC)
-Diffuser:Plastic.PC
-ImpellenPlastic.POM
-Seal lubricant oil:Oil for food machinery and pharmaceutic use
  OPERATING CONDITIONS
-Maximum fluid temperature up to +35°c
-Maximum sand contents.25%

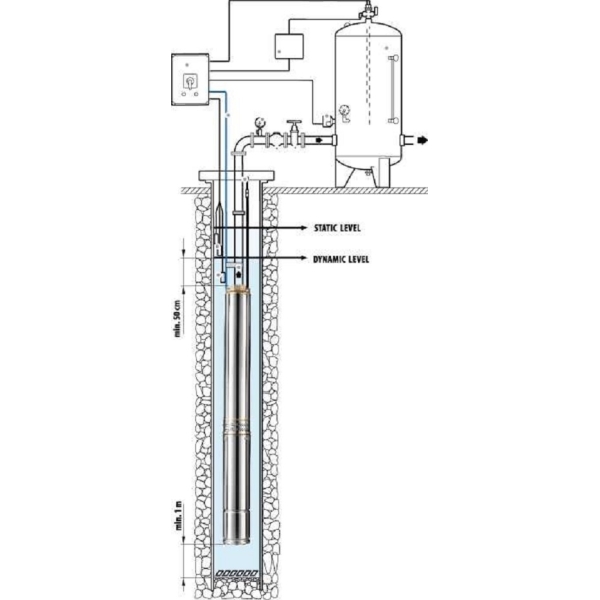

-4SD minimum well diameter:4"

-Spout: 1 1/4 "

Dry operation of the pump causes damage

Installation must be vertical.
