MODEL 5SCM3

APPLICATION
-Suitable for use with clean water with a sand content of no more than 150g/m3.
-Because of their high efficiency and reliability,they are suitable for use in domestic,civil and industrial applications such as for the distribution of water in combination with pressure tanks,for irrigation,for washing plants and for pressure boosting in fire-fighting sets,etc.

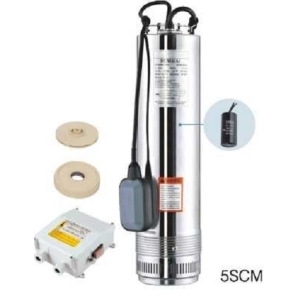

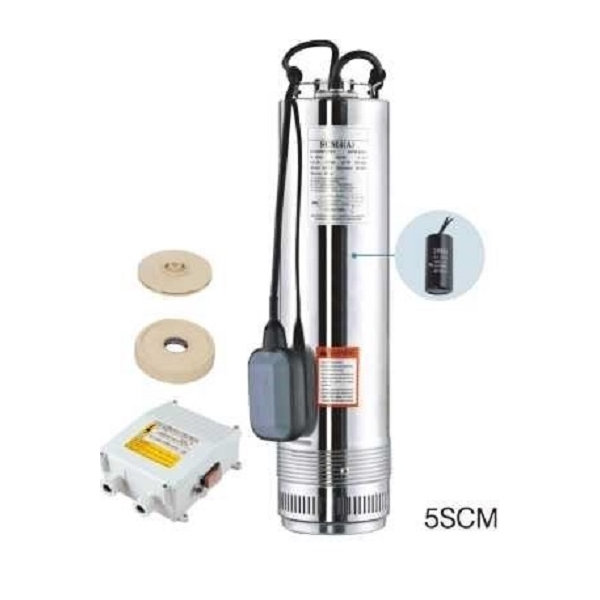

MOTOR AND PUMP
-Rewindable motor
-Pump with start control box or digital auto-control box
-It’s available to equip with floating switch
-Pump and motor external casing:AISI 304 ss
-Shaft:AISI 304 SS-ASTM 5140
-Bottom support:AISI 304 ss
-Delivery casing and suction lantern:AISI 304 ss
-Top chock: 1.AISI 304 ss 2.Cast-iron ASTM NO.30
-Mechanical seakGraphite-Ceramic
-Diffuser and impeller:Plastic.PPO(5SCM)
-Seal lubricant oik Oil for food machinery and pharmaceutic use
OPERATING CONDITIONS
-Maximum fluid temperature up to +35°C
-Maximum sand contents.25%
-Minimum well diameter:13Omm

-Spout: 1 1/4 "

Dry operation of the pump causes damage

Installation must be vertical.
